| Plaats van herkomst: | Zhejiang, China |
|---|---|
| Merknaam: | XK |
| Certificering: | ISO9001 / GB / IEC |
| Min. bestelaantal: | 1 Stuk / Stukken |
| Prijs: | Negotiation |
| Verpakking Details: | het uitvoeren verpakking |
| Levering vermogen: | 100 Piece / stuks per maand |
| standaard: | CEI | Nominale stroom: | MEER |
|---|---|---|---|
| Nominale spanning: | 3~36KV | Mechanische levensduur: | 10000 |
| Poort: | Ningbo | ||

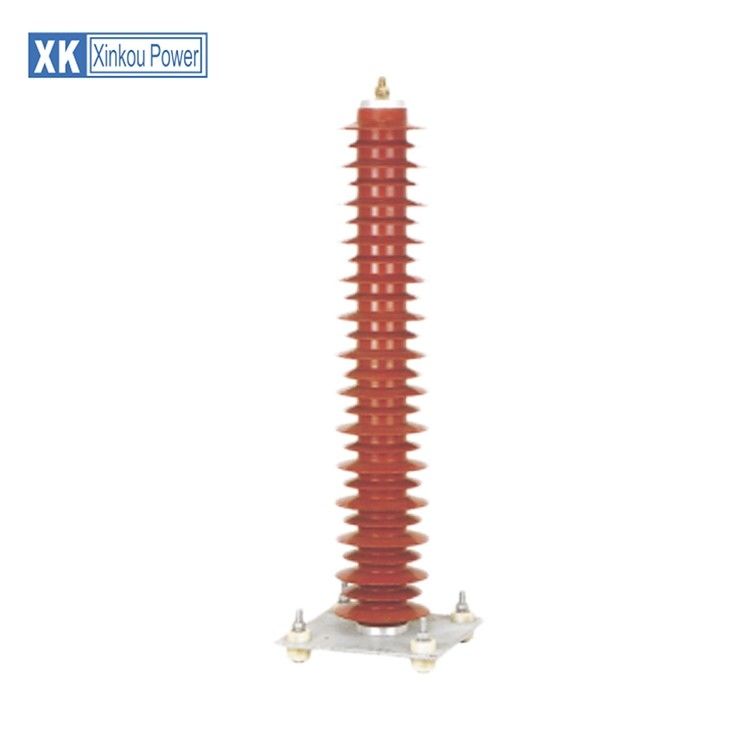

| Hoog licht: | De Remhaak van de metaaloxidebliksem,uitwijzingstype bliksemremhaak |
||
| Type |
Nominale spanning (KV) |
MCOV (KV) |
Overblijvend voltage (KV) |
2000ms vierkant golfimpuls de stroom weerstaat |
4/10MS hoog huidige impuls (KV) |
||
|
Steile impuls huidig |
Omschakeling huidig impuls |
Bliksem huidige impuls |
|||||
| Hy5w-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 65 |
| Hy5w-6 | 6 | 5.1 | 19.5 | 15.4 | 18 | 100 | 65 |
| Hy5w-9 | 9 | 7.65 | 28.5 | 23.1 | 27 | 100/200 | 65 |
| Hy5w-10 | 10 | 8.4 | 36 | 30 | 23 | 150/200 | 65 |
| HY5W-11 | 11 | 9.4 | 40 | 33 | 30 | 150/200 | 65 |
| HY5W-12 | 12 | 10.2 | 38 | 30.8 | 36 | 100/200 | 65 |
| HY5W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | 100/200 | 65 |
| HY5W-18 | 18 | 15.3 | 57 | 46.2 | 54 | 100/200 | 65 |
| HY5W-21 | 21 | 17 | 66.5 | 53.9 | 63 | 100/200 | 65 |
| HY5W-24 | 24 | 19.2 | 76 | 61.6 | 72 | 100/200 | 65 |
| HY5W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | 100/200 | 65 |
| HY5W-30 | 30 | 24.2 | 95 | 76.5 | 90 | 100/200 | 65 |
| HY5W-33 | 33 | 26.8 | 104.5 | 84.7 | 99 | 100/400 | 65 |
| HY5W-36 | 36 | 29 | 114 | 92.4 | 108 | 100/400 | 65 |
| HY5W-42 | 42 | 34.1 | 132.3 | 100.1 | 126 | 100/400 | 65 |
| Type |
Geschat voltage (KV) |
MCOV (KV) |
Overblijvend voltage (KV) |
2000ms vierkant golfimpuls de stroom weerstaat |
4/10MS hoog huidige impuls (KV) |
||
|
Steile impuls huidig |
Omschakeling huidig impuls |
Bliksem huidig impuls |
|||||
| Hy10w-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 100 |
| Hy10w-6 | 6 | 5.1 | 19.5 | 15.4 | 18 | 100 | 100 |
| Hy10w-9 | 9 | 7.65 | 28.5 | 23.1 | 27 | 100 | 100 |
| Hy10w-10 | 10 | 8.4 | 36 | 30 | 23 | 250 | 150 |
| HY10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 150 |
| HY10W-12 | 12 | 10.2 | 38 | 30.8 | 36 | 200 | 100 |
| HY10W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | 200 | 100 |
| HY10W-18 | 18 | 15.3 | 57 | 46.2 | 54 | 200 | 100 |
| HY10W-21 | 21 | 17 | 66.5 | 53.9 | 63 | 200 | 100 |
| HY10W-24 | 24 | 19.2 | 76 | 61.6 | 72 | 200 | 100 |
| HY10W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | 200 | 100 |
| HY10W-30 | 30 | 24.2 | 95 | 76.5 | 90 | 200 | 100 |
| HY10W-33 | 33 | 26.8 | 104.5 | 84.7 | 99 | 400 | 100 |
| HY10W-36 | 36 | 29 | 114 | 92.4 | 108 | 400 | 100 |
| HY10W-42 | 42 | 34.1 | 132.3 | 100.1 | 126 | 400 | 100 |
| HY10W-48 | 48 | 39 | 152 | 126 | 150 | 400 | 100 |
| HY10W-54 | 54 | 43 | 171 | 139 | 162 | 600 | 100 |
| HY10W-60 | 60 | 48 | 208 | 160 | 180 | 600 | 100 |
| HY10W-66 | 66 | 52.8 | 230 | 172 | 198 | 600 | 100 |
